Hyperbaric Oxygen Therapy Chamber

HBOT-130: Medical-Grade Healing at 3.0 ATA – Precision Pressure for Superior Recovery
hbot 130

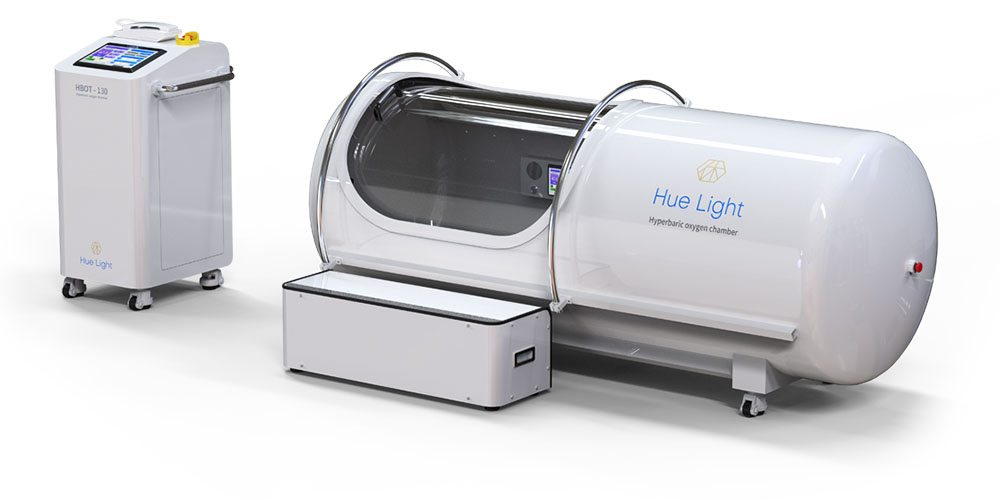

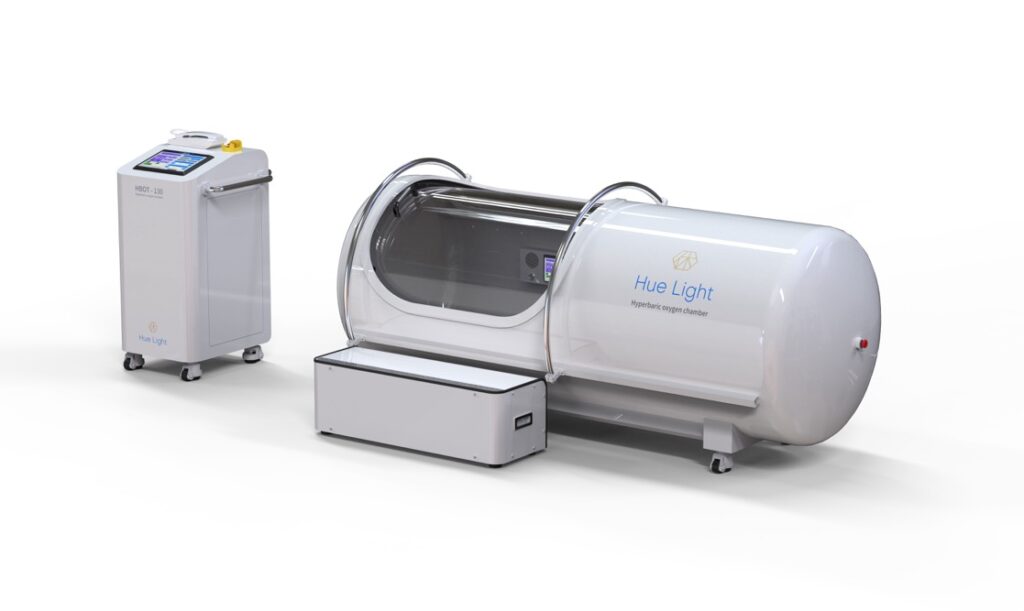

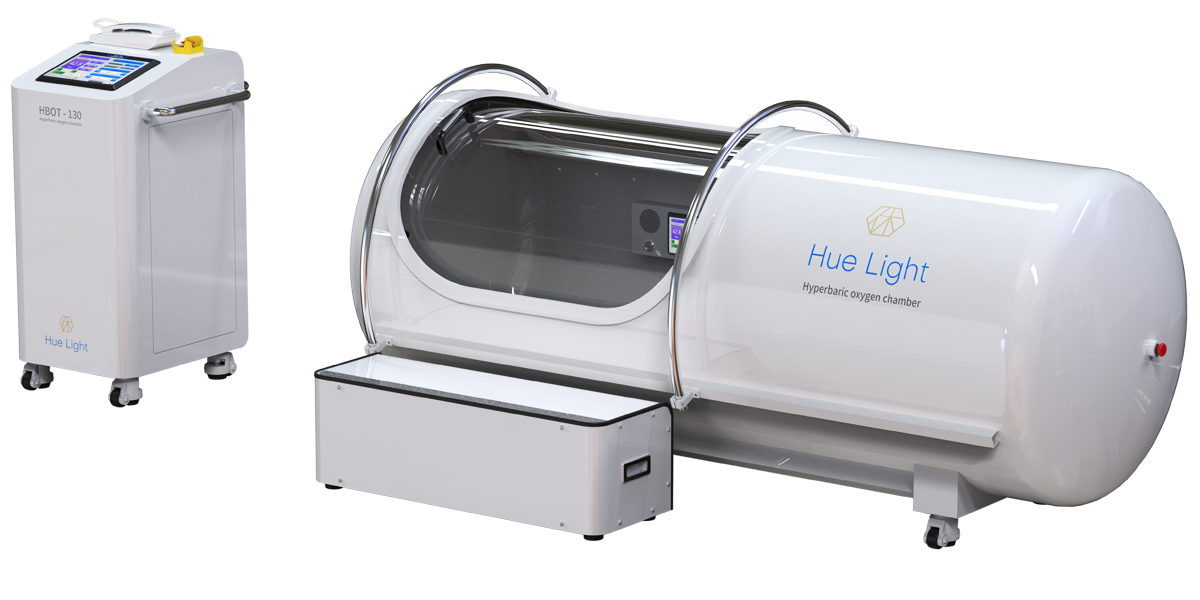

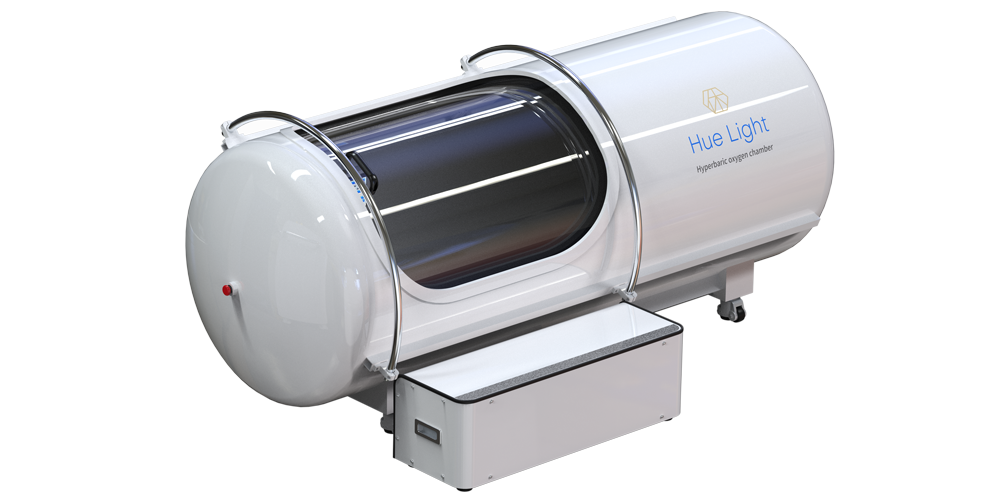

HBOT-130 | Hyperbaric Oxygen Therapy Chamber

Revolutionize Healing with Medical-Grade HBOT

Transform Clinical Results with the HBOT-130 Medical Hyperbaric Chamber
Designed for superior therapeutic outcomes and patient comfort, our hospital-grade Hyperbaric Oxygen chamber delivers pressurized oxygen therapy up to 3.0 ATA – double the pressure of standard 1.5 ATA systems.

  • Spacious and ergonomic – Full-length bed design accommodates patients comfortably with 2100mm of interior length. Features two-way intercom communication and panoramic viewing ports for patient monitoring.
  • Advanced medical safety systems – Automated pressure regulation with emergency manual override. Certified rapid decompression from 3.0 ATA in under 5 minutes while maintaining safety protocols.
  • Medical-grade construction – 3.6mm 304 stainless steel chamber with 30mm reinforced polycarbonate door creates an uncompromising barrier against air leakage. Far exceeds the durability of galvanized steel models.
  • Clinical or advanced home use – Intuitive dual control system with 7″ interior and 10″ exterior touchscreens. Pre-programmed pressure protocols with customizable settings for specialized treatment plans.
CONTACT SALES
What’s Included
  • Capsule body
  • Compressor and Condenser cabinet / Step stool
  • Air-supply hose: Delivers the compressed air from the controller to the capsule
  • Exhaust hose: Exhaust air from the capsule to the controller
  • Serial cable extension: Cable connector for temperature, humidity, and interphone
  • Oxygen tank cable: Cable for connecting the oxygen tank (additional) to the device
  • Pressure sensor hose: Deliver the pressure from the capsule to the pressure sensor
What’s Included
  • Capsule body
  • Compressor and Condenser cabinet / Step stool
  • Air-supply hose: Delivers the compressed air from the controller to the capsule
  • Exhaust hose: Exhaust air from the capsule to the controller
  • Serial cable extension: Cable connector for temperature, humidity, and interphone
  • Oxygen tank cable: Cable for connecting the oxygen tank (additional) to the device
  • Pressure sensor hose: Deliver the pressure from the capsule to the pressure sensor

What Is Hyperbaric Oxygen Therapy (HBOT)?

Hyperbaric Oxygen Therapy (HBOT) is a treatment that increases blood oxygen level and improves hypoxemia by allowing users to breathe high-purity oxygen under elevated atmospheric pressure inside a hyperbaric chamber. This therapy is conducted at pressures ranging from 1.5 to maximum 3.0 ATM, which is higher than normal atmospheric pressure, 1.0 ATM.

Pressure Effect:

Increased pressure reduces the size of gas bubbles in human blood and bodily fluids. This change helps alleviate symptoms and slow disease progression.

Our Features

1

3.6mm Medical-Grade 304 Stainless Steel Chamber

  • 3x more durable than standard steel
  • Corrosion-resistant for hospital-level hygiene
  • Maintains perfect seal at up to 3.0 ATA

2

True 3.0 ATA Therapeutic Pressure (Optional Upgrade)

  • Delivers 7-10x greater oxygen saturation vs. 1.5 ATA chambers
  • Gradual pressure adjustment (1.1-3.0 ATA) for patient comfort

3

Integrated Oxygen Generator System

  • No external tanks needed
  • Delivers 95% pure oxygen directly to medical mask
  • Saves $2,500+ vs. competitor models requiring separate O₂ systems

4

Dual-Control Safety System

  • 7″ interior + 10″ exterior touchscreens
  • Mechanical backup + 17-language interface
  • Emergency decompression in <5 minutes

5

Water-Cooled Climate Control

  • Maintains perfect 68-72°F (20-22°C) during therapy
  • Prevents condensation for clear visibility

6

Wide-Body Design (810mm Entry)

  • Accommodates patients up to 6’7″ (200cm) comfortably
  • Reinforced 30mm polycarbonate door with belt locking

Theory of Combined Oxygen and Dissolved Oxygen

Pharmacological Effects and Benefits

  • Enhances Neovascularization – Stimulates cell regeneration and promotes new blood vessel formation.
  • Boosts Immune Response – Increases the phagocytic activity of polymorphonuclear leukocytes, aiding in faster healing.
  • Improves Oxygen Transport – Increases oxygen delivery to tissues with circulatory disorders by 7 to 10 times.
  • Reduces Edema & Supports Lymphatic Drainage – Helps minimize swelling and facilitates the removal of excess fluids.
  • Antibacterial Effect – Inhibits the growth of both anaerobic and aerobic bacteria.

Oxygen Absorption Mechanism

Ordinary breathing alone is insufficient to significantly increase oxygen levels in the body. However, in a hyperbaric environment:

  • Oxygen is directly dissolved into blood plasma due to its small molecular size, allowing it to easily pass through capillaries.
  • Oxygen delivery is not dependent on hemoglobin levels, making it effective even for individuals with reduced red blood cell function.

Product Specifications and Basic Features

Product Name Supine Hyperbaric Oxygen Chamber
Model HBOT-130
Tank Material Stainless Steel 304, Thickness 3.6mm
Transparent Door Material PC 30mm, Belt Reinforced
Pressurization Method Air Pressurization (Maintains Internal Stability), Pressurization pump: USA GAST
Maximum Pressure Up to 2.3 ATA (2.3 atmospheres). Settings: 1.1, 1.3, 1.5, 1.7, 2.0, 2.3 (Optional: 2.4~3.0 atmospheres)
Oxygen Generator System Integrated with External Control System
Breathing Method Special Medical Breathing Mask Inside Chamber
Operation System 7-inch Control Screen Inside, 10-inch Main Unit Outside
Mechanical Buttons + Touchscreen Dual System
Touch Control Panel Languages English, Korean, Spanish, Portuguese, Polish, Japanese, etc. (17 Languages)
Cooling System Water-Cooled Air Conditioning System for Hyperbaric Oxygen Therapy
Dimensions (Main Unit) 2100mm (L) × 950mm (H) × 810mm (W)
Breathing Method Special Medical Breathing Mask Inside Chamber

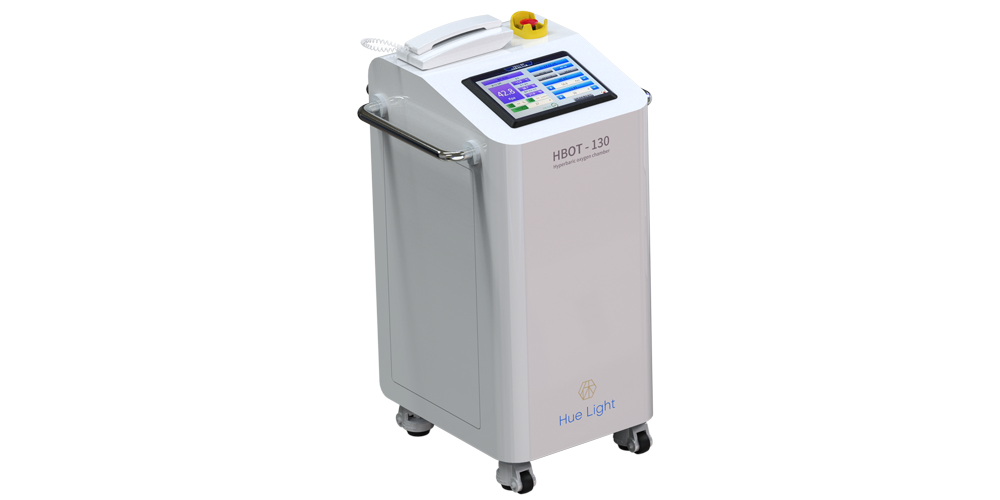

Pressurization Control Unit 580mm (L) × 899mm (H) × 390mm (W)
Weight 250 kg, Control Unit: 45 kg

Enhanced Healing with HBOT-130

Experience the transformative benefits of hyperbaric oxygen therapy—enhanced healing, increased energy, and faster recovery. Want to learn more? Speak with our experts today!

CONTACT US

Easy to Operate

User-friendly and low maintenance. Fill with sterile, distilled water. Then, place the nasal cannula,
choose your settings, and start breathing healing hydrogen gas.

  • Step 1: Set the pressure
  • Step 2: Set the run time
  • Step 3: Close door
  • Step 4: Press start compression
  • Step 5: Confirm the pressure
  • Step 6: Check proper operation
  • Step 7: Enjoy hyperbaric benefits!

Checkout Our Seat-Type HBOT Devices

HBOT – 120 Seat Type Hyperbaric Oxygen Chamber

Explore Now

HBOT – 070 Seat Type Hyperbaric Oxygen Chamber

Explore Now

Hyperbaric Oxygen Therapy (HBOT) and Insurance Coverage

Conditions Covered by Korean Health Insurance

Emergency Treatment:

  • Carbon monoxide poisoning
  • Decompression sickness (diver’s disease)
  • Gas embolism
  • Anaerobic bacterial infections (gas gangrene)
  • Cyanide poisoning
  • Central retinal artery occlusion
  • Severe anemia when blood transfusion is not an option

Chronic Wounds and Other Conditions:

  • Burns
  • Buerger’s disease
  • Post-skin graft or flap surgery
  • Post-digital replantation surgery
  • Radiation-induced tissue necrosis
  • Diabetic foot ulcers (W.3)
  • Intractable osteomyelitis
  • Brain abscess
  • Sudden hearing loss
Conditions Not Covered by Korean Health Insurance

HBOT may also be beneficial for conditions involving impaired oxygen and nutrient delivery, including:

  • Post-surgical recovery – Ligament repair, fracture healing
  • Ear & balance disorders – Meniere’s disease, barotrauma-related ear damage
  • Injury rehabilitation – Sports injuries, crush injuries, muscle tears
  • Aesthetic & surgical applications – Blindness from filler complications, post-dental implant healing, post-hair transplantation recovery
  • Neurological and cardiovascular conditions – Multiple sclerosis, stroke, cerebral infarction, headaches, cardiovascular disease
  • Cognitive & developmental support – Autism, brain function decline due to hypoxia, and more

Testimonials

“

“Having attended numerous workshops throughout my career, I can confidently say that your Hue Light Masterclass stands out as one of the most profound and comprehensive experiences I've had. As a passionate Neurologist committed to improving patient outcomes, I have always been inclined toward traditional treatment methods. However, Hue Light not only provided me with invaluable knowledge but also allowed me to personally experience the remarkable efficacy of their cutting-edge technology.
Inspired by the transformative impact of the Hue Light Masterclass, both personally and professionally, my wife, who is my business manager, and I have made the momentous decision to establish a new Interventional Neuro Rehab center. This decision stems directly from the insights gained and the unwavering belief we now have in the power of these innovative treatments. We are incredibly grateful for the knowledge and inspiration imparted during the masterclass, as it has propelled us to embark on this exciting new venture that will positively impact countless lives.”

Dr. Syed Asad MDNeurologist
“

“It is with genuine enthusiasm that I reflect upon the masterclass orchestrated by Dr. Ghen on the subject of Hue Light technology. The depth and breadth of Dr. Ghen's didactic presentation were rivaled only by the hands-on experiential learning which he so skillfully facilitated. The technology presented to us stood out not just in its remarkable construction but also in its sheer ease of use and its myriad of scientific advantages. Hailing from Central and South America, we've often encountered challenges when trying to implement new technologies. Yet, this masterclass has imbued us with the confidence to expand our horizons, with the knowledge that these products will serve as the shining beacons in our growth journey. In today's world, it is indeed rare to encounter products that not only meet but surpass their descriptions. Our heartfelt thanks to Dr. Ghen for an enlightening experience that will undoubtedly shape the future of our ventures in the region.”

Nicolas PeñaCEO
“

“This was such a gift. I have my energy back, I feel like myself, and I know I’m going to continue to see improvement.”

Star WaltersTriathlete
“

“After getting on the light bed, inhaling the hydrogen and getting in the hyperbaric chamber, I feel relaxed and so much more energized! I came in with a tremendous amount of soreness and inflammation, and I feel like that’s all left!”

Kevin DonoghueSpartan Race Pro
“

“I stopped the medication for the last 3 or 4 days. Without the medication, my tremor was unbearable, but at the moment it’s pretty controlled with more and more treatments I get. I feel like even if I take the medication the dosage frequency will be a lot less.”

Yi-Jeong KimTreatment Testimonial
Contact Us

FAQs

Can the HBOT-130 be used for multiple patients back-to-back in clinical settings?

Yes, the HBOT-130 is designed for high-throughput clinical use. Its medical-grade 304 stainless steel construction and advanced climate control system allow for rapid sanitation between sessions. The chamber’s water-cooled temperature regulation prevents overheating during consecutive treatments, while the automated pressure reset ensures consistent performance.

How does the HBOT-130 handle patients with claustrophobia or anxiety during sessions?

The HBOT-130’s panoramic viewing ports, two-way intercom, and spacious bed-style design (2100mm length) significantly reduce claustrophobia. For anxious patients, our system allows gradual pressure ramping (adjustable 1.1–3.0 ATA) and includes an emergency decompression option (<5 mins). Clinicians can also pause sessions if needed.

What maintenance is required for the integrated oxygen generator?

The built-in oxygen generator requires minimal upkeep: filter replacements every 6 months (included in warranty) and an annual purity calibration check. Unlike tank-based systems, it eliminates gas logistics but maintains 95% purity. The chamber’s touchscreen alerts users when maintenance is due.

Is the HBOT-130 compatible with MRI/CT scans or implanted medical devices?

While the chamber itself is non-magnetic (304 stainless steel), patients with implants should consult their physician. The HBOT-130’s electromagnetic shielding prevents interference with most pacemakers or prosthetics at ≤2.0 ATA, but 3.0 ATA sessions may require special evaluation for safety.

Can the chamber be customized for specialized treatments (e.g., pediatric or geriatric care)?

Yes. The HBOT-130 offers programmable pressure protocols for tailored therapies, including pediatric-friendly low-pressure settings (1.1–1.5 ATA) and extended treatment timers for chronic conditions. Accessories like pediatric masks or extra padding can be added for comfort.
